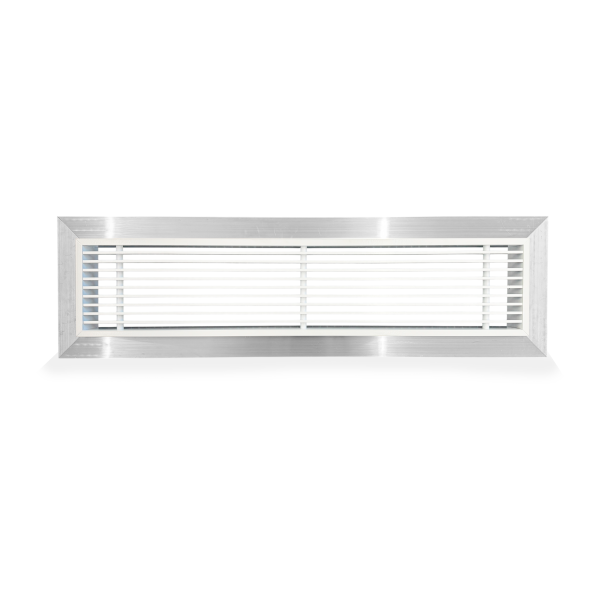

Airfoil’s Australian Made Slimline Linear Bar Grille with Plaster Mounting Frame (S-LBG-P-00) combines functionality with modern aesthetics. Precision-engineered from aluminium extrusions, it is designed primarily for Supply Air but also suits Return Air applications. Its defining feature is a 10mm Slimline Flange with 20mm x 3mm flat bar blades at a 12mm pitch, each with a 0° flat-bar for optimised horizontal throw and balanced airflow.
The blade system is reinforced with a 12mm round aluminium mullion and heavy-duty rivet fixings for strength and durability. With a minimalist 10mm frame and 50mm mounting depth, it delivers a clean, refined finish. Avaialble in our standard white powder-coat, Natural Andodised silver or can alternatively be powder-coated to any custom colour. The S-LBG-00 is also available with optional black one-way mesh and black spacers. Ideal for residential and commercial settings requiring uniform horizontal air distribution.
